VS Assembly Part 2

Some time lapse of the riveting of the main skin. - 2.1 man hours

Video of how the puller works,

The final rivets of the lower rear spar caps to flanges.

Time to attach the front skin

Use Boelube on the screws to prevent galling.

All done!

Left side...

Right side.....

Used the bolt gauge that came with my RV-10 kit to figure out which  bolts were being called out.

Torqued the upper hinge assembly to the spar.



Zip tied the lower hinge to the spar.

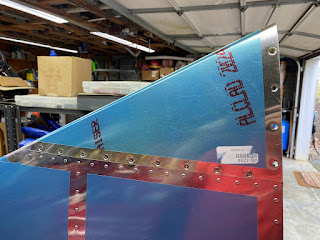

Finished product right side.

Finished product spar side.

Finished product left side.
