Stabilator Prep Part 3

 Primed and assembled the stabilator spar cap assembly. - 2 man hours

Parts were acid etched and scrubbed then primed.

Was a small batch of parts this time.  Used my new 6oz cups and that worked well.

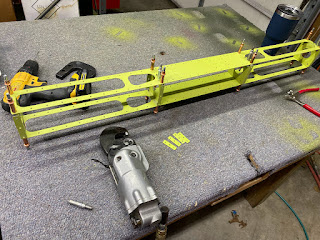

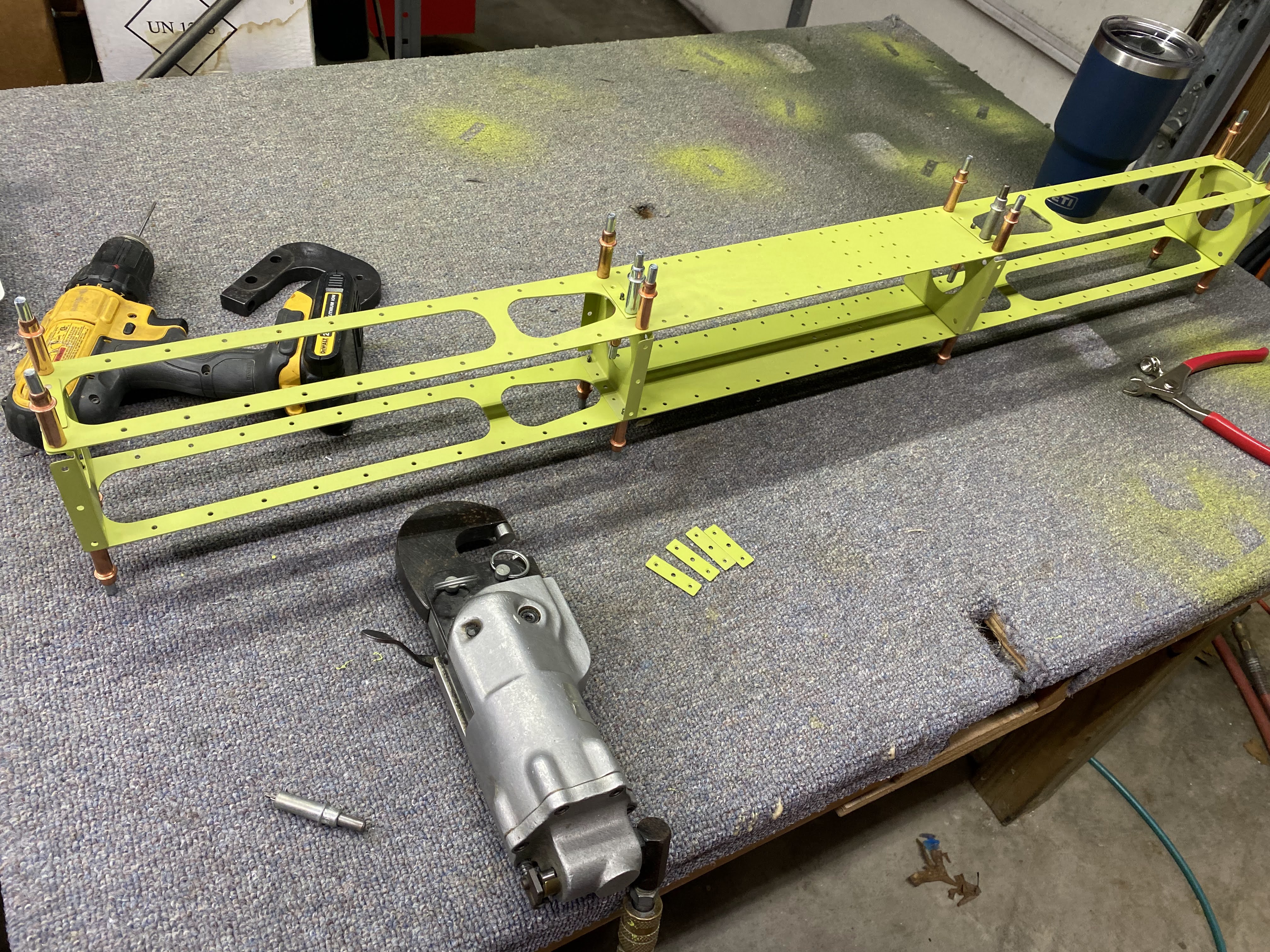

Orientation of these parts is critical.  The ribs are not symmetrical and there is a forward and aft difference in the spar caps.

The little spacers go on top of the spar caps where the ribs are.

Used the squeezer to set these rivets.  Only the two outboard 3/32 rivets get set at this point.

One side done.

All finished and ready to move on to the spars.
